Camera imaging rendering effect diagram
Last revision 2026/08/03
HUSKYLENS 2 camera lens options are documented through real imaging examples at fixed distances, helping makers choose the right module for AI vision projects. It’s like test‑driving different camera views before building your robot or STEM classroom setup. The standard lens on HUSKYLENS 2 is shown with test charts and real desktop, QR code and indoor scenes from 15 cm to 300 cm, revealing its balanced sharpness for general object, face and marker recognition. After simple manual focus ring adjustment, the same stock lens delivers crisper details at 10–200 cm, improving close‑range pattern learning and mid‑range scene stability without changing hardware. The SEN0728 adjustable focus camera and SEN0729 IR night vision camera add more flexibility, with charts and scenes at 5–300 cm that illustrate how precise refocusing and infrared sensitivity support specialized applications like low‑light tracking or compact robotics. The wide‑angle module in the HUSKYLENS 2 Plus Kit is demonstrated with checkerboards, QR codes and indoor scenes from 5 to 300 cm, highlighting its expanded field of view for room‑scale interaction, multi‑object detection and immersive DIY installations. Together, these curated image sets provide unique, project‑level evidence of how each lens behaves across distance, enabling users to match optics to their learning, prototyping or classroom needs rather than relying only on abstract specs.
HUSKYLENS 2 Standard Lens
Lens comes with the HUSKYLENS 2
High-definition original photos can be downloaded via 1. StardardLens.zip. Thumbnails are displayed below and may suffer from image quality degradation.

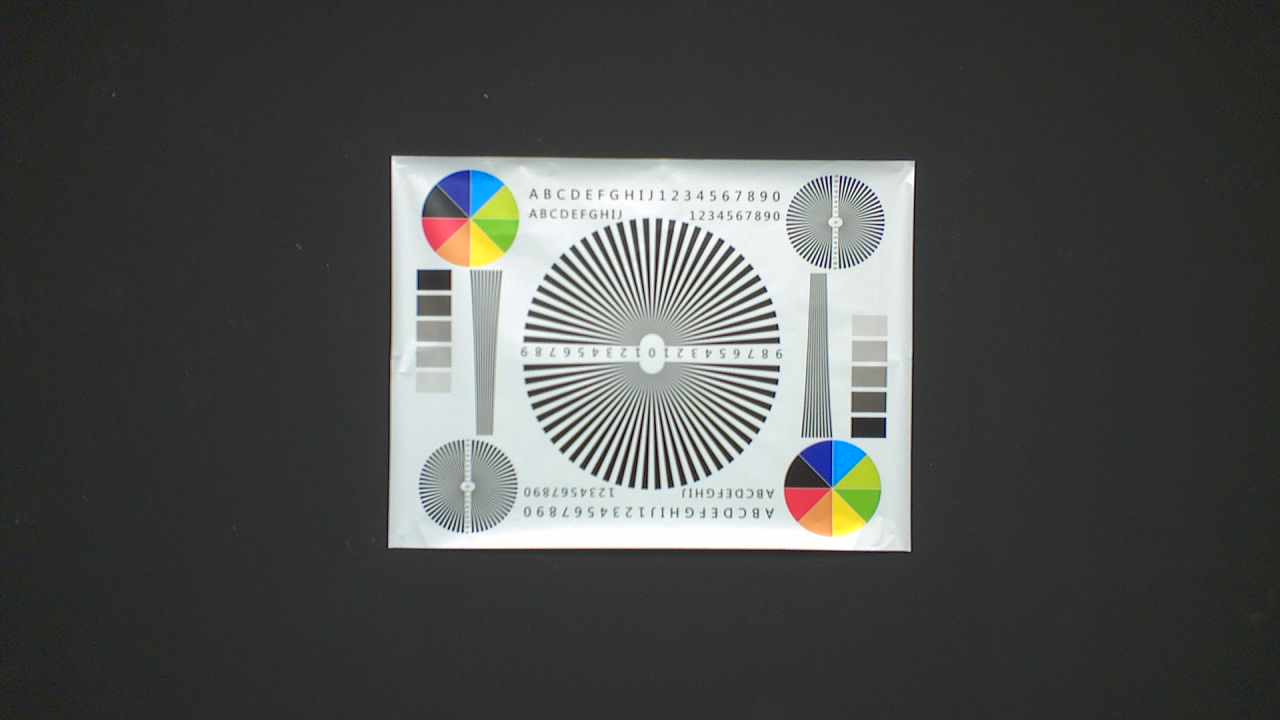

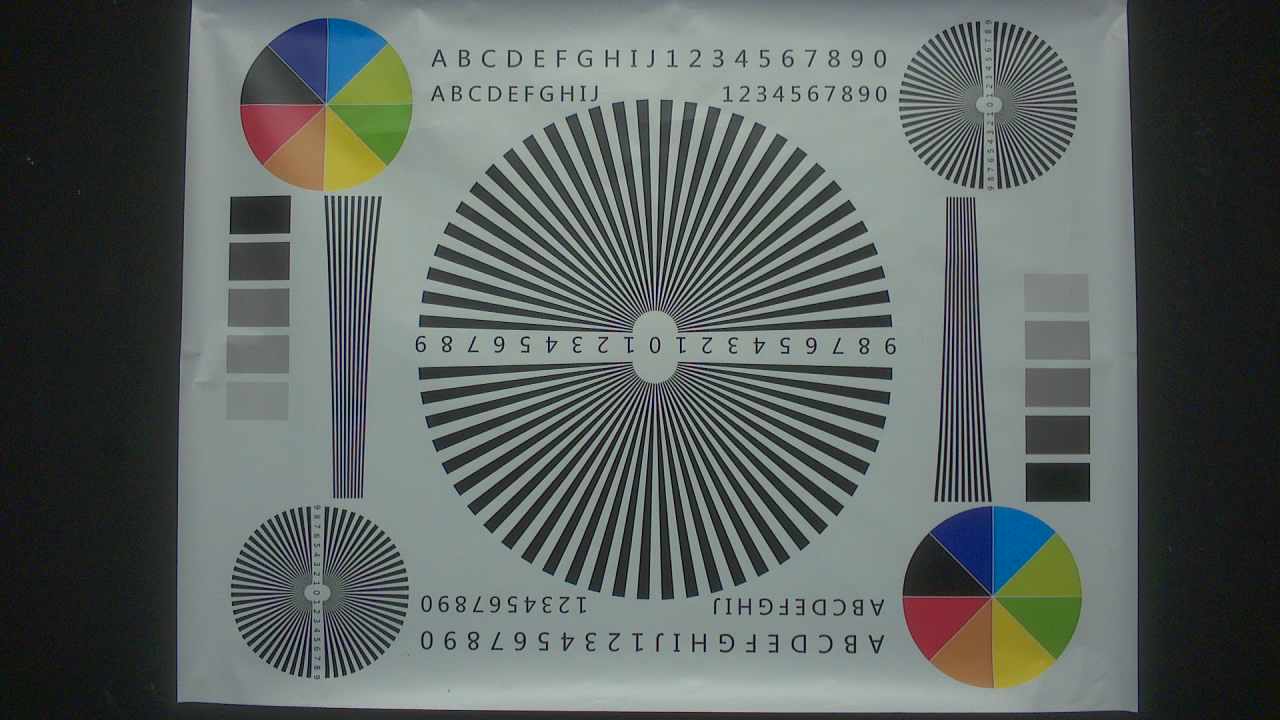

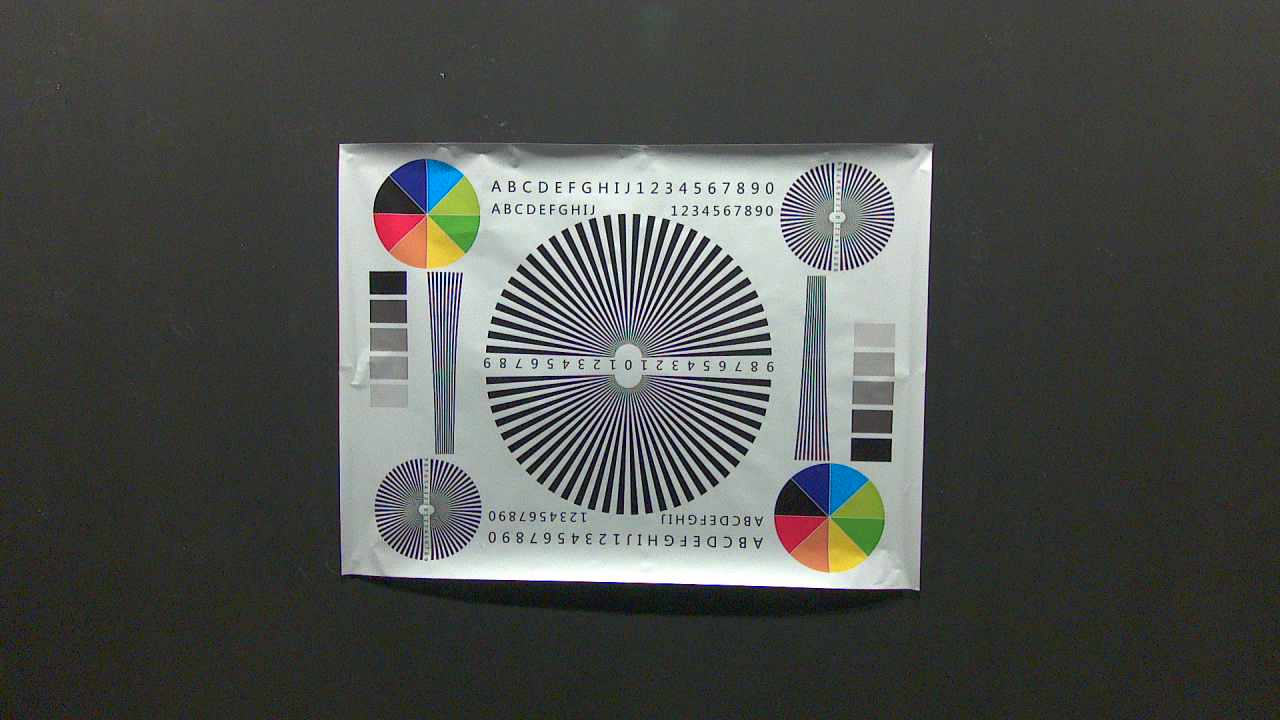

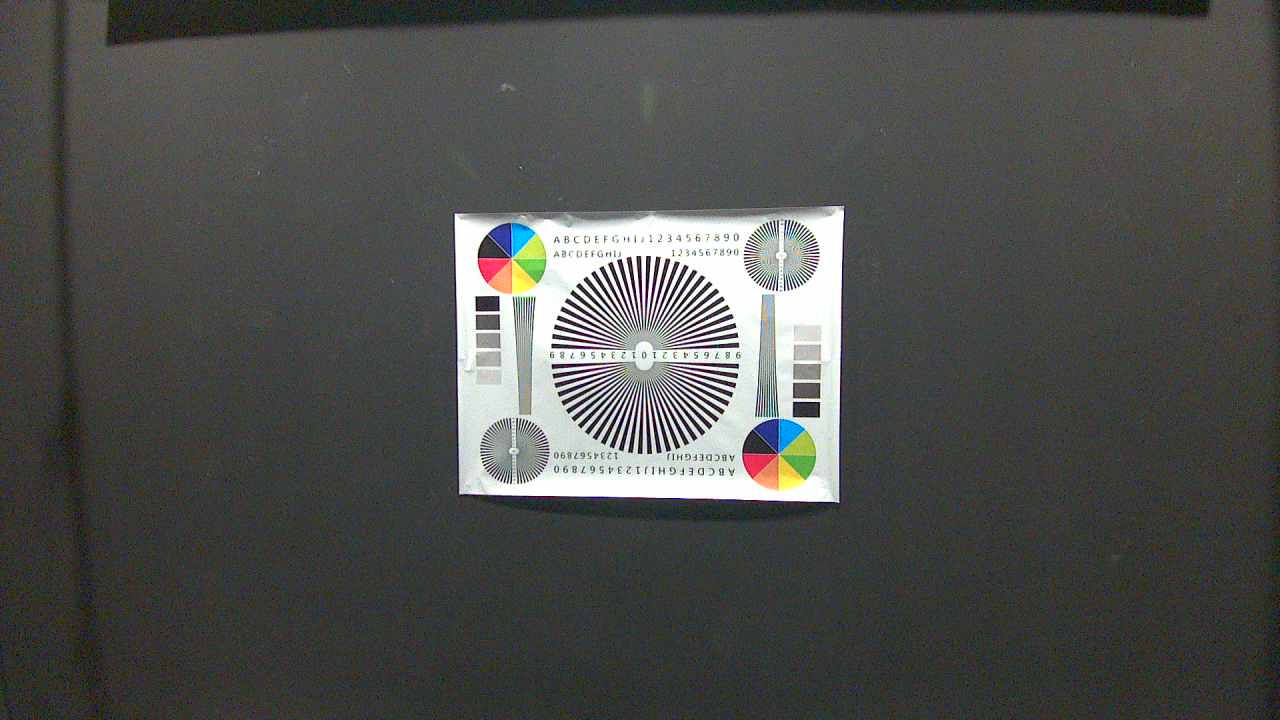

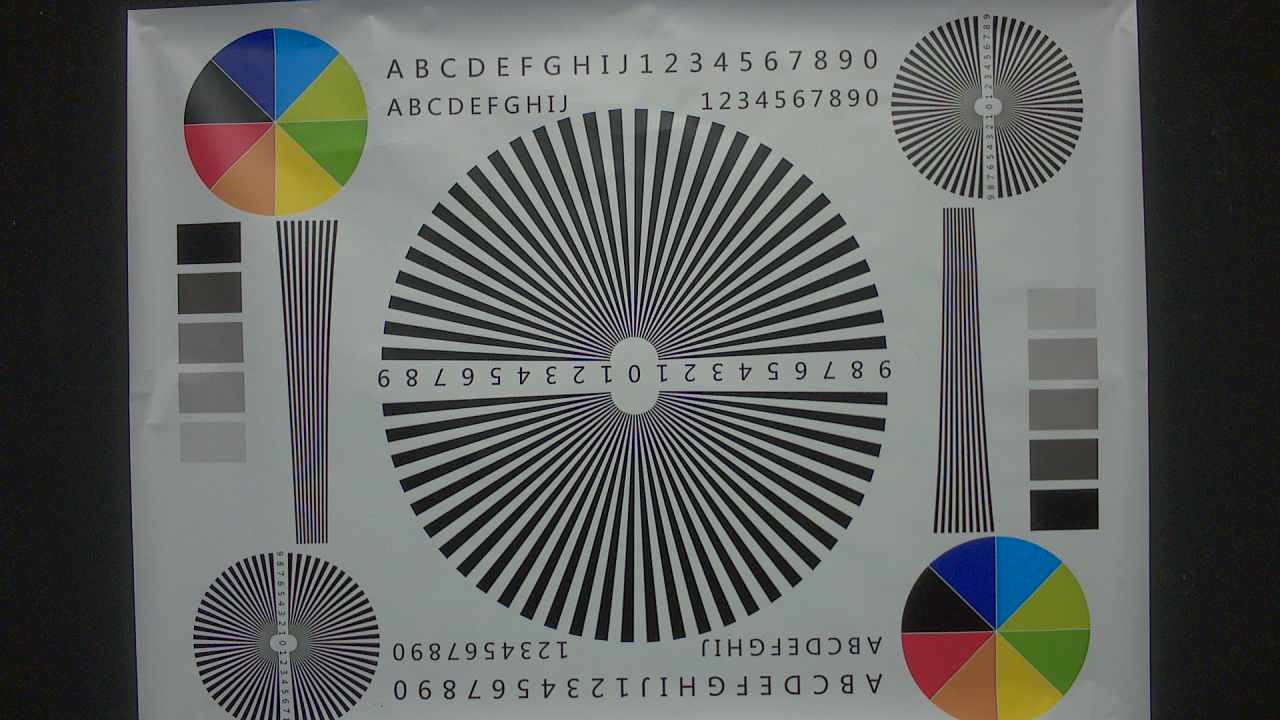

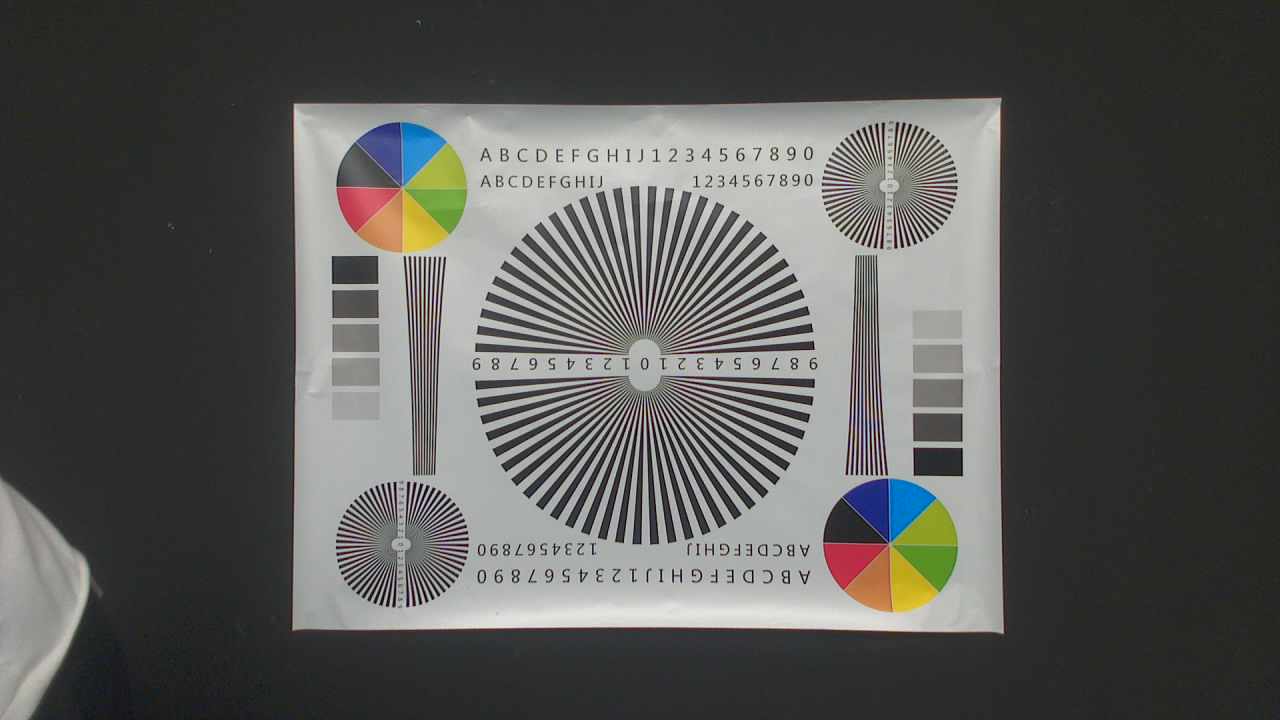

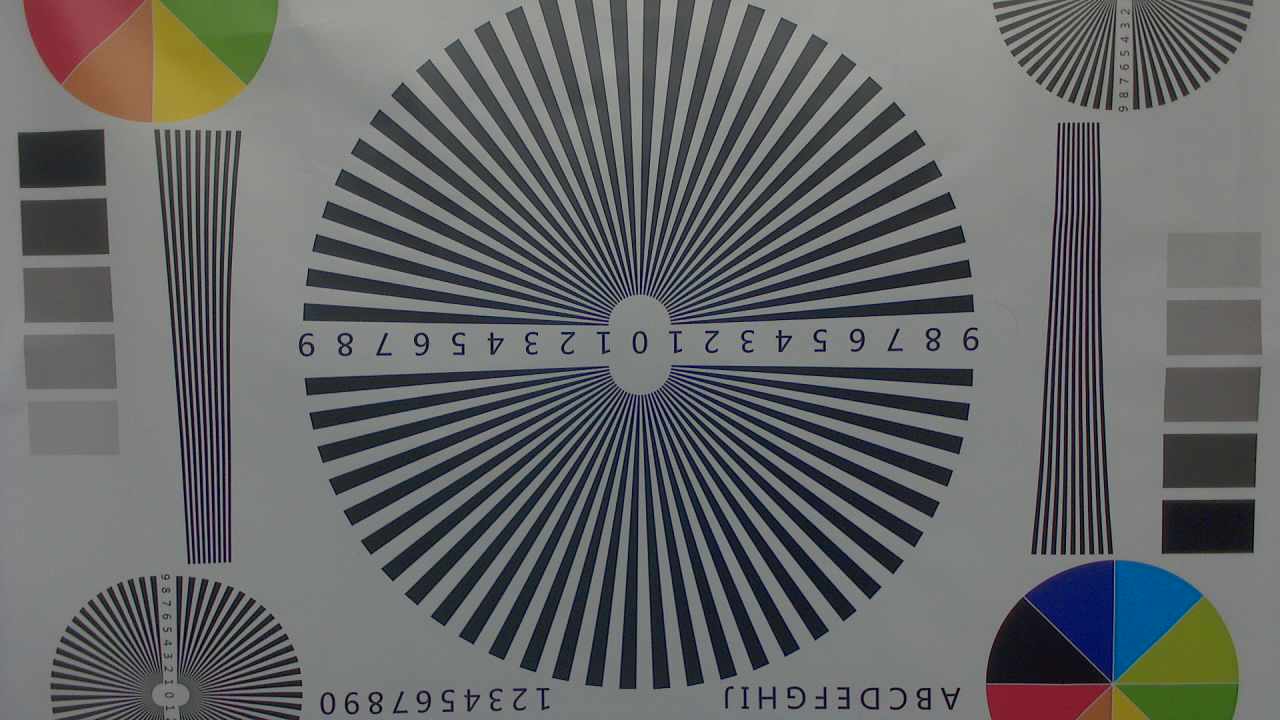

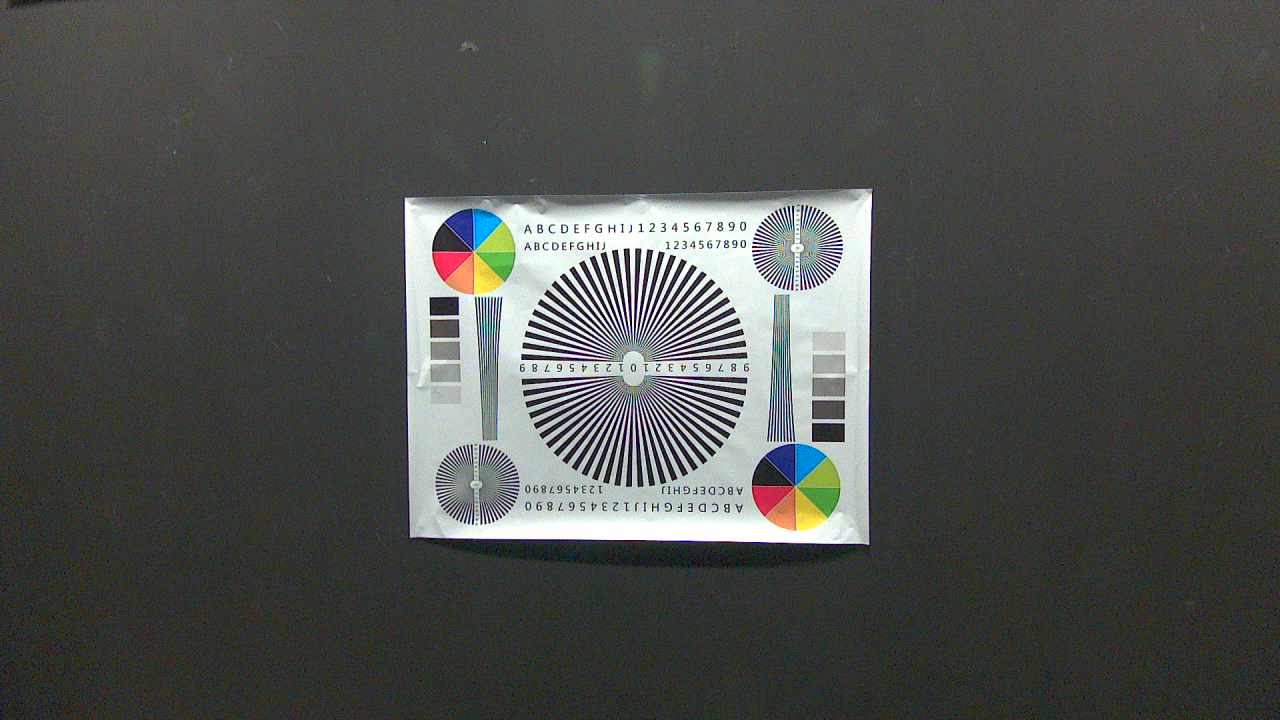

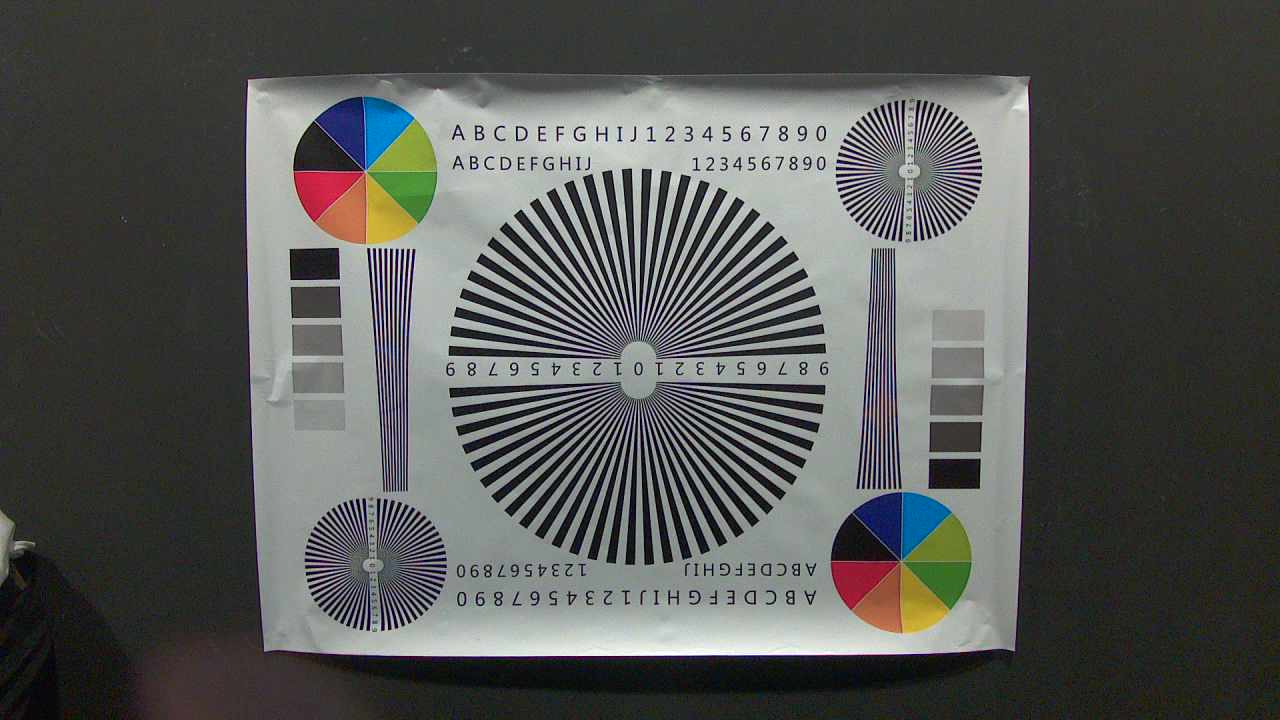

Lens Test Chart Performance
Distance: 50cm
Distance: 80cm
Distance: 100cm
200cm Distance

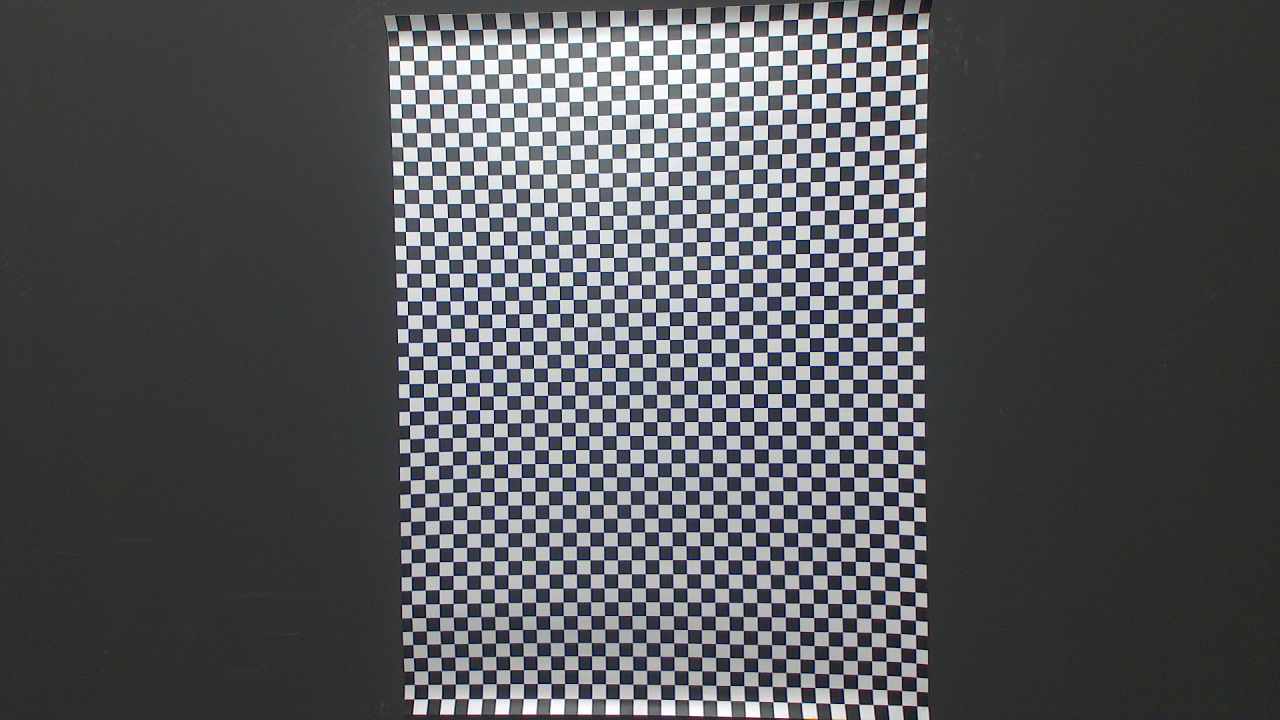

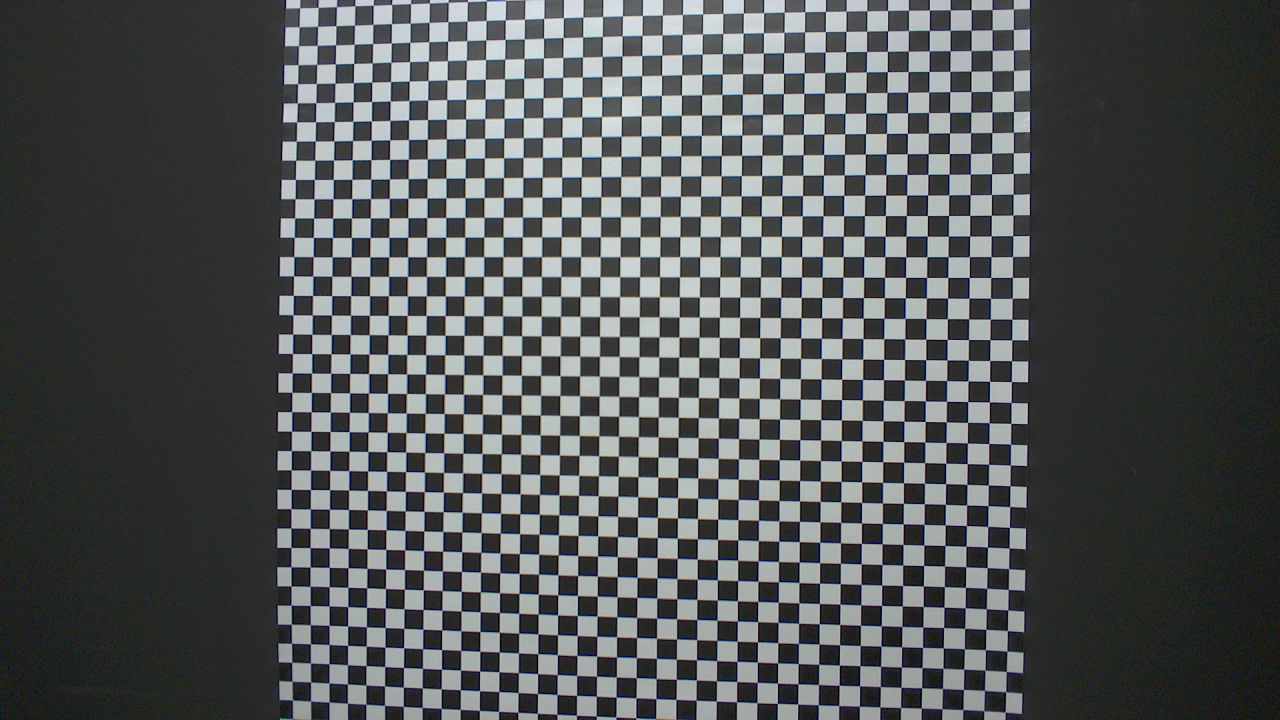

Distance: 100 cm, checkerboard

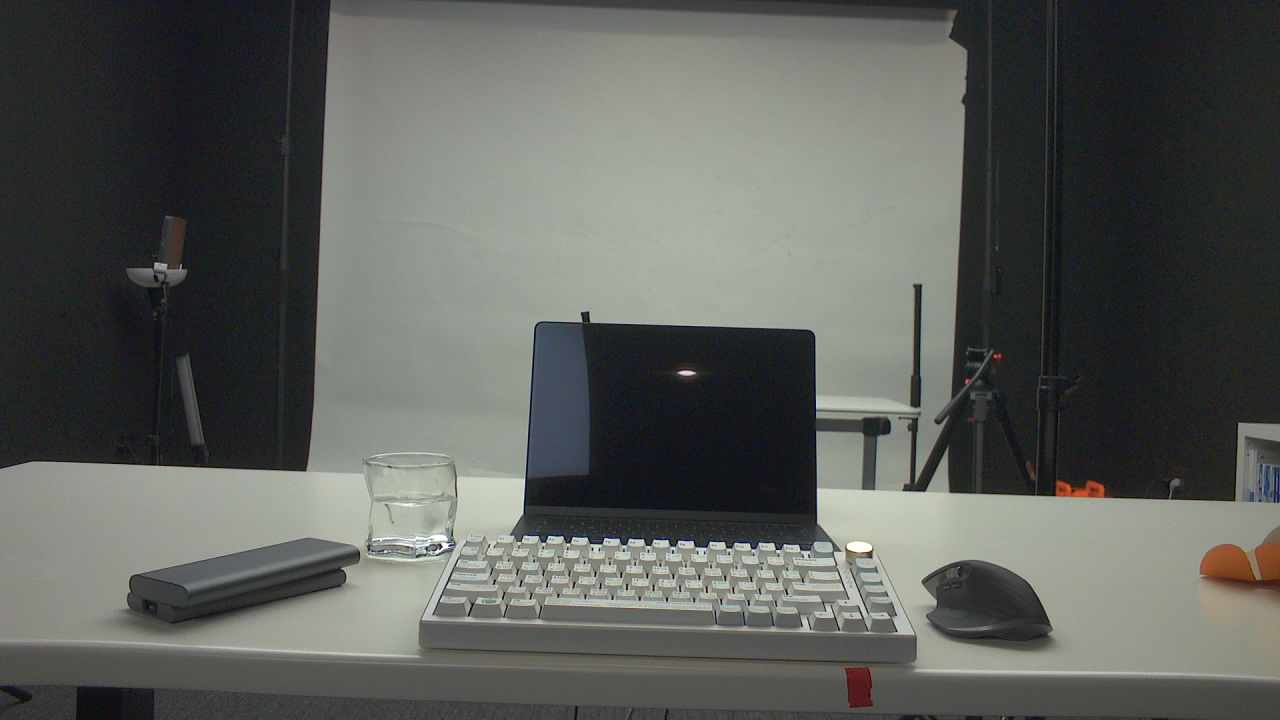

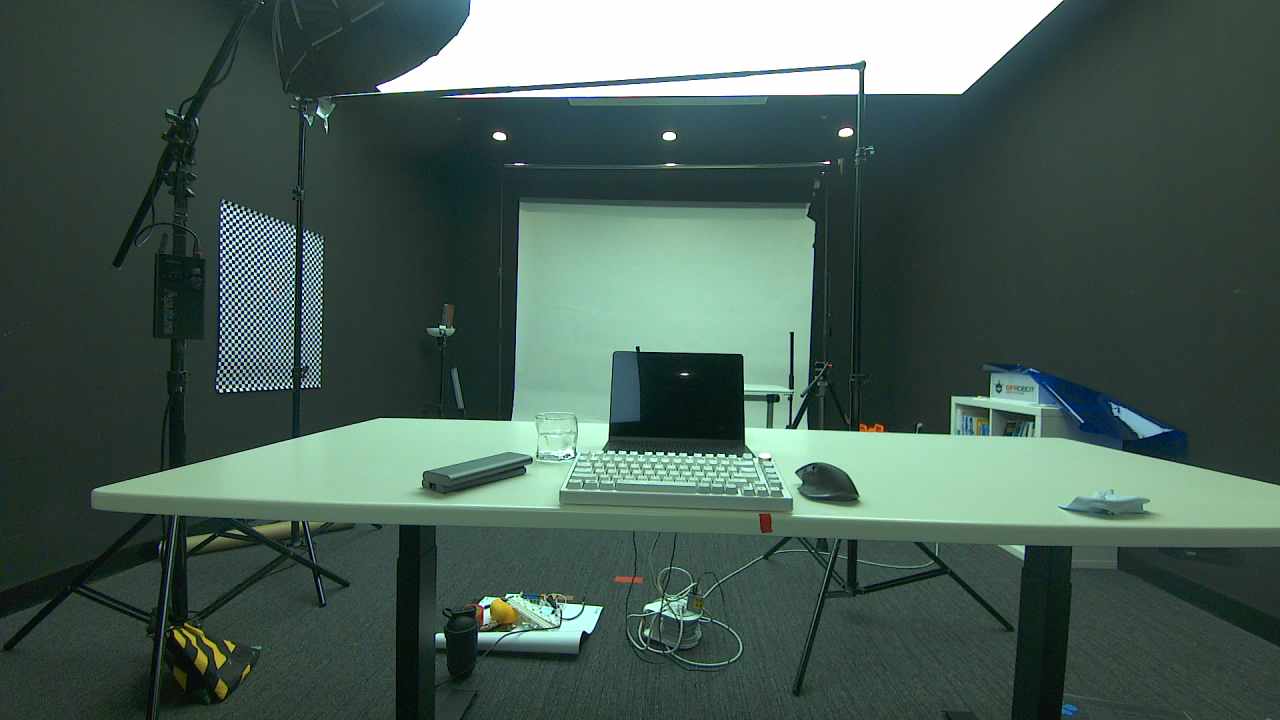

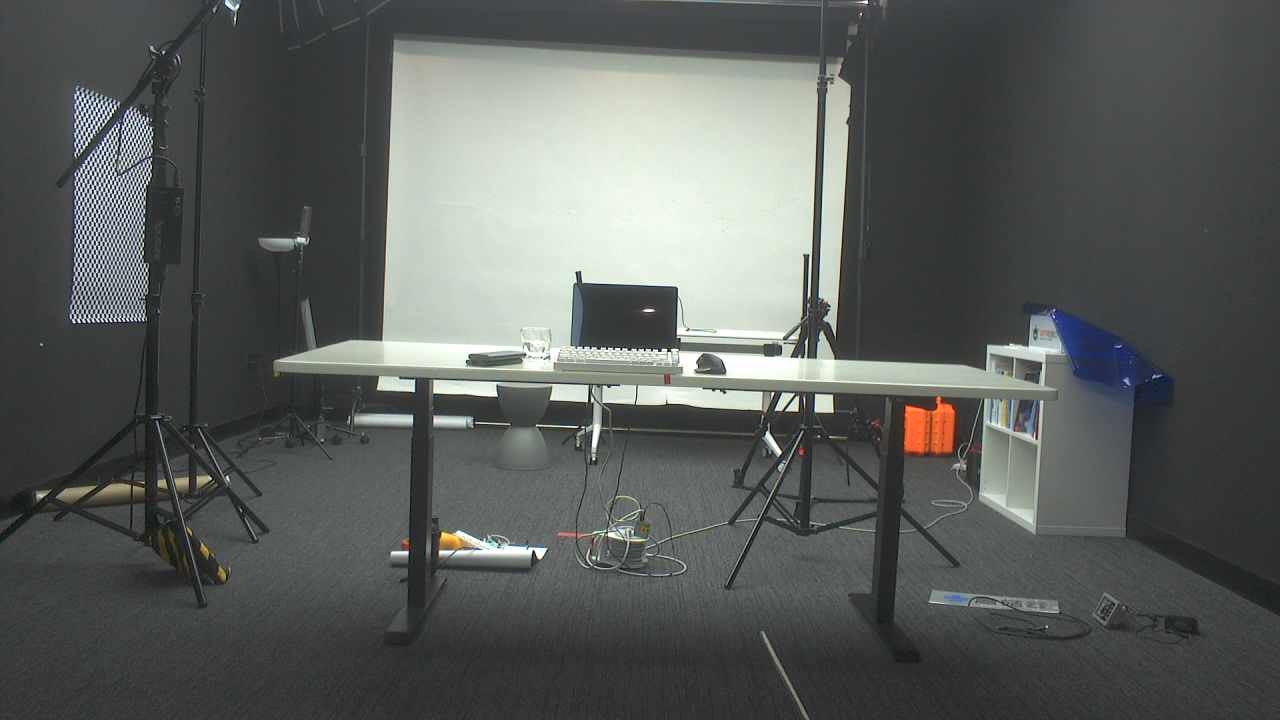

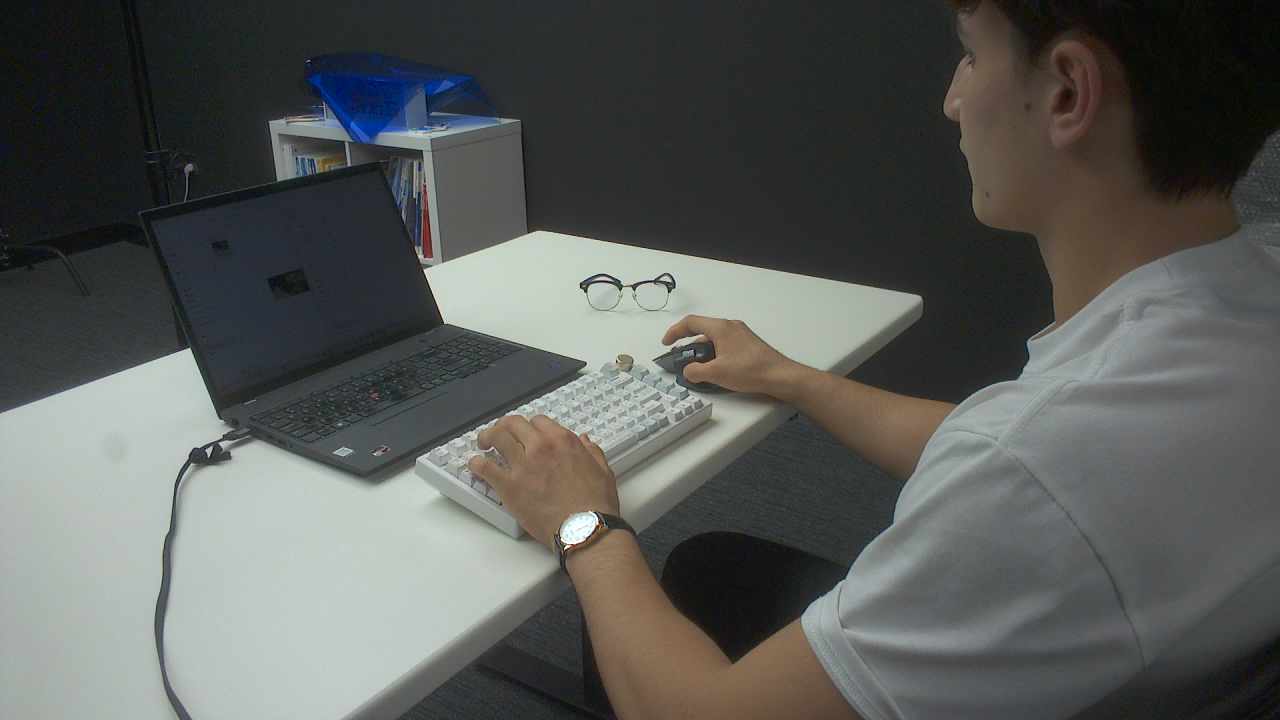

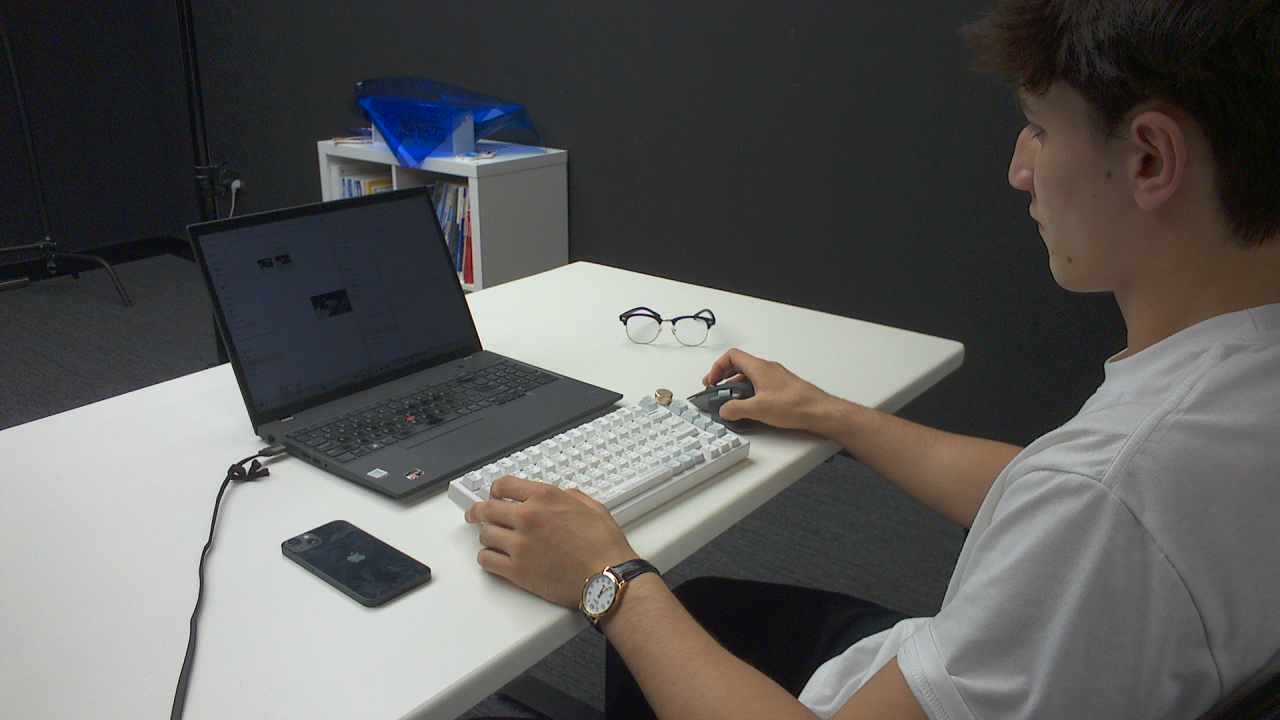

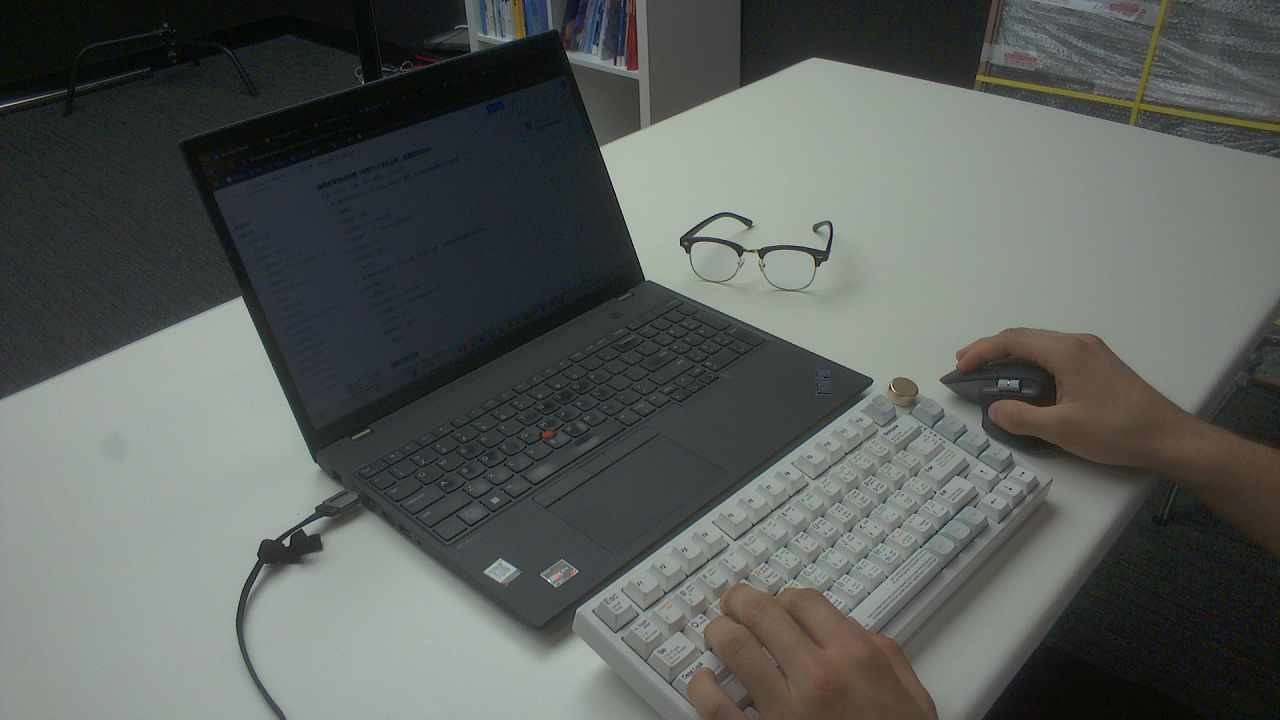

Desktop Scene Actual Shot
Distance: 50cm
Distance: 100cm

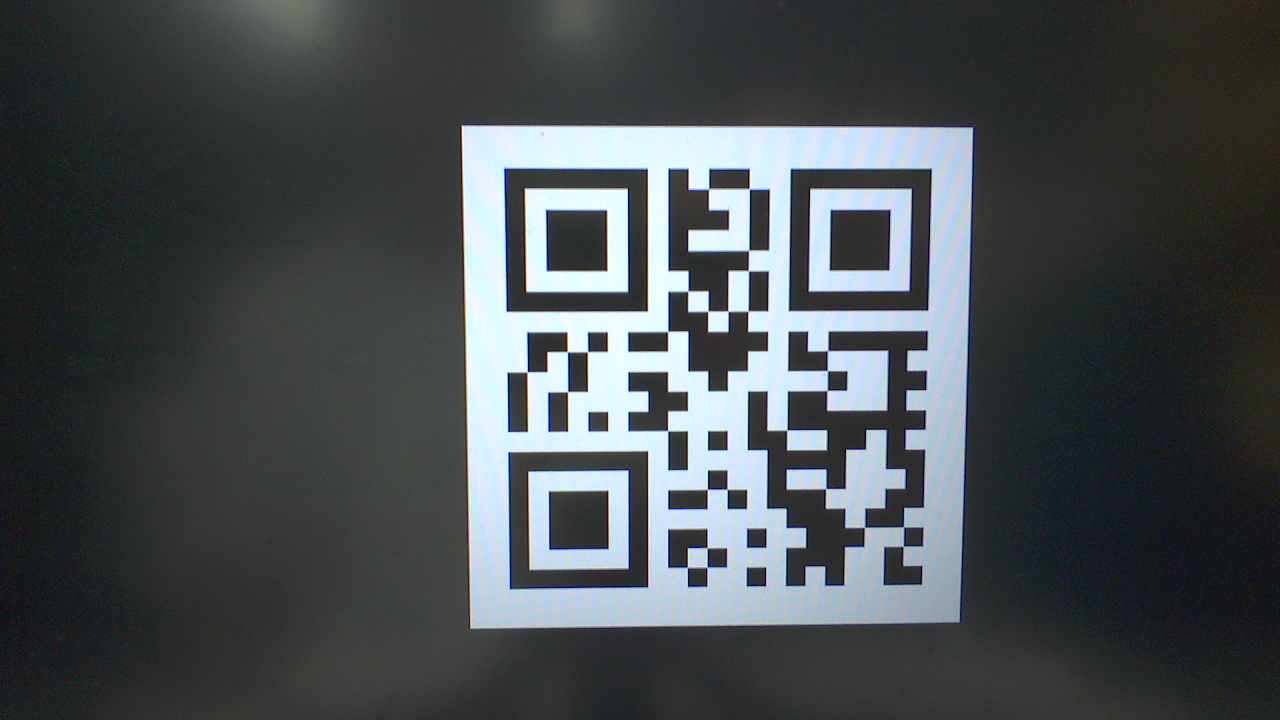

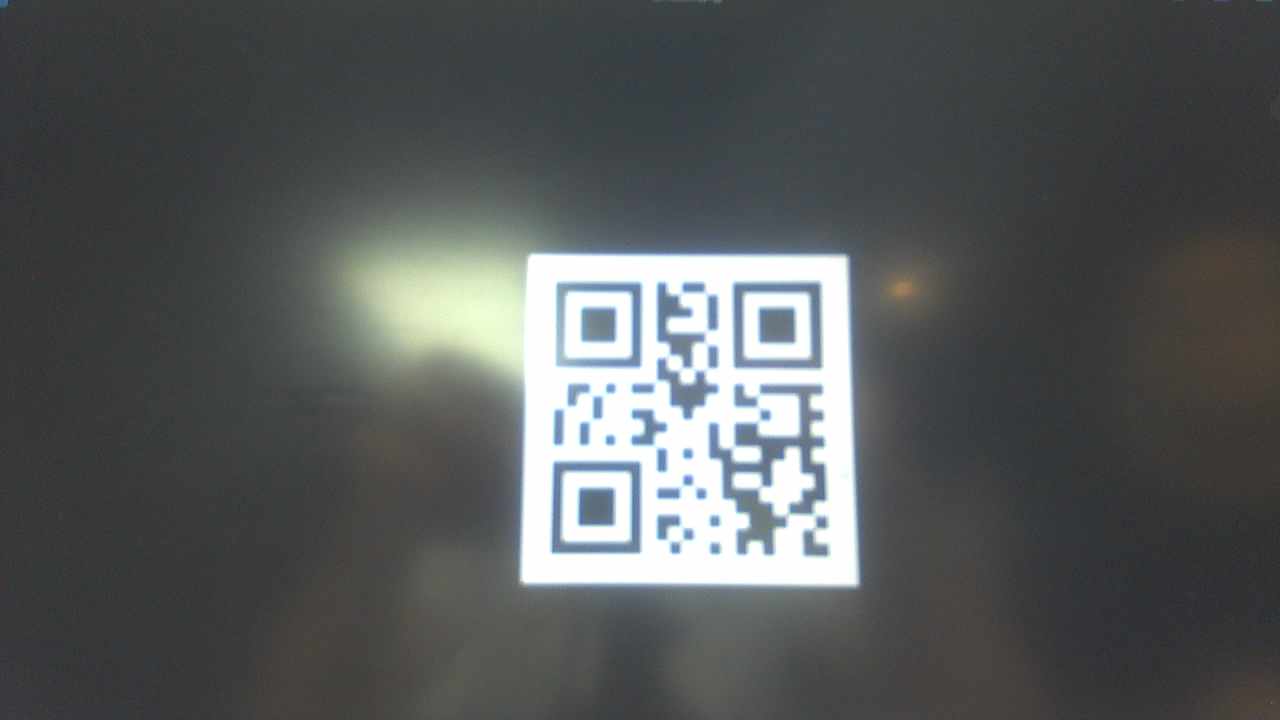

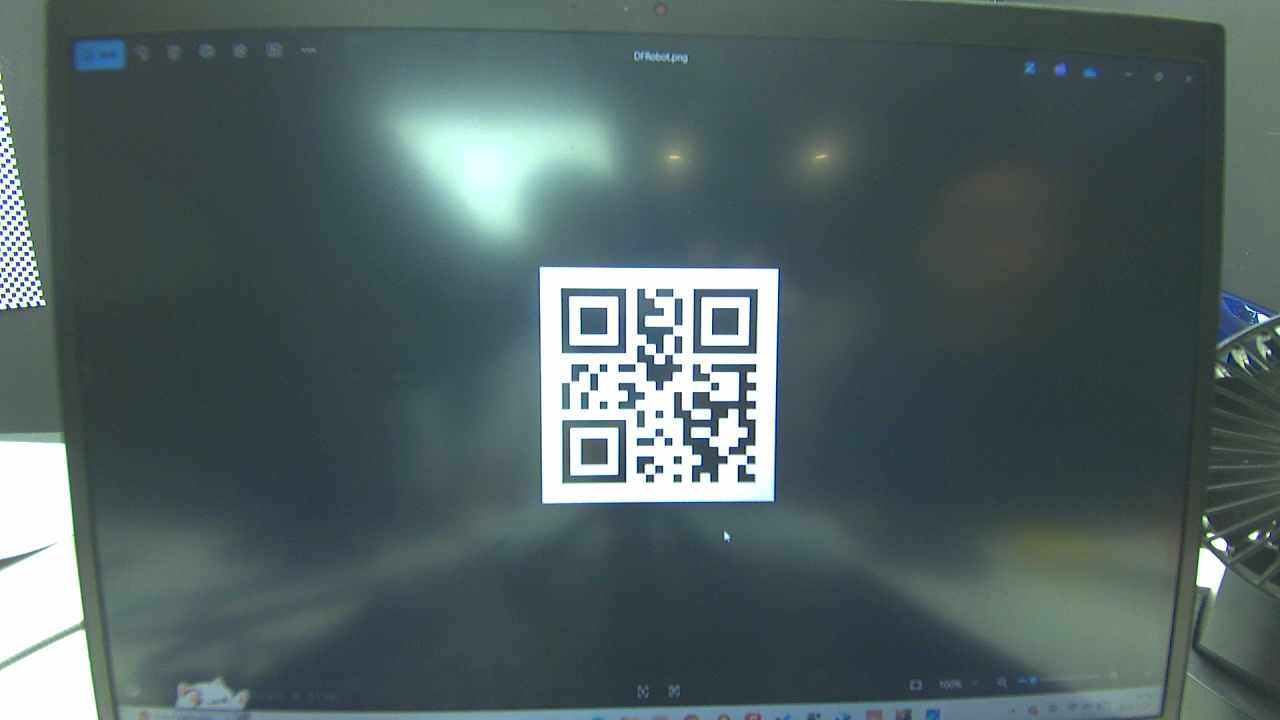

Close-range QR Code
Distance: 15cm

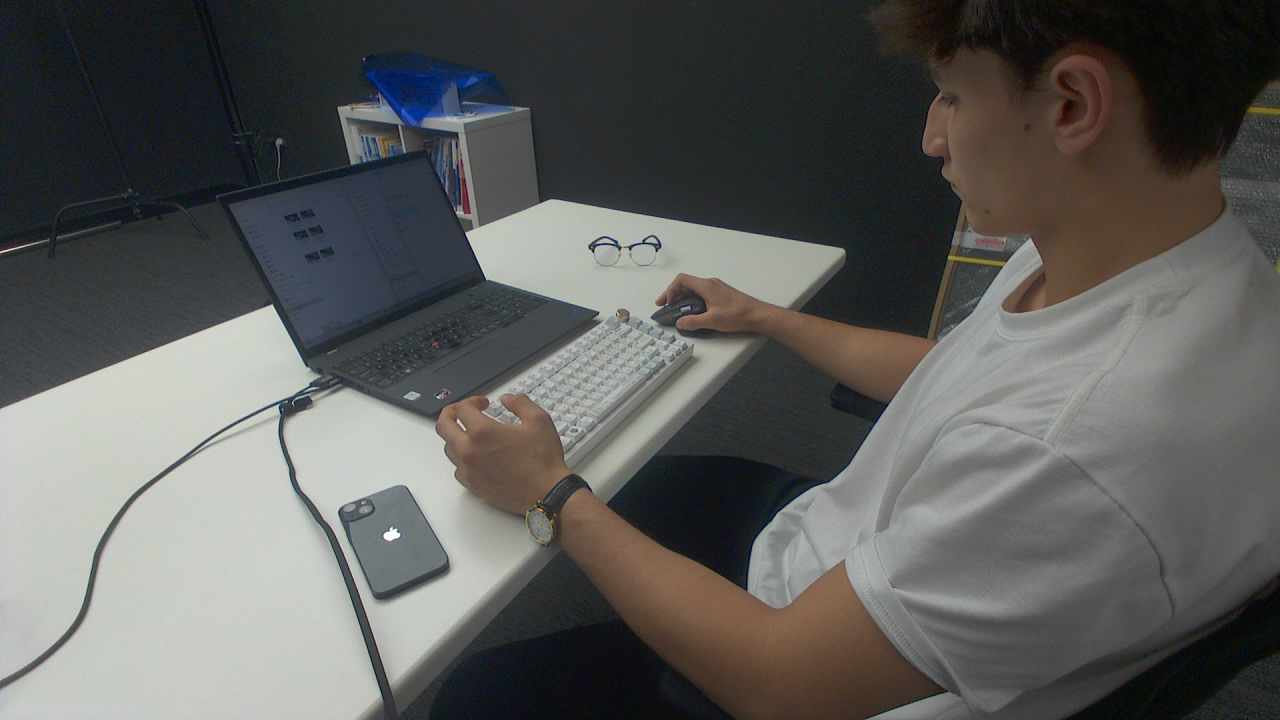

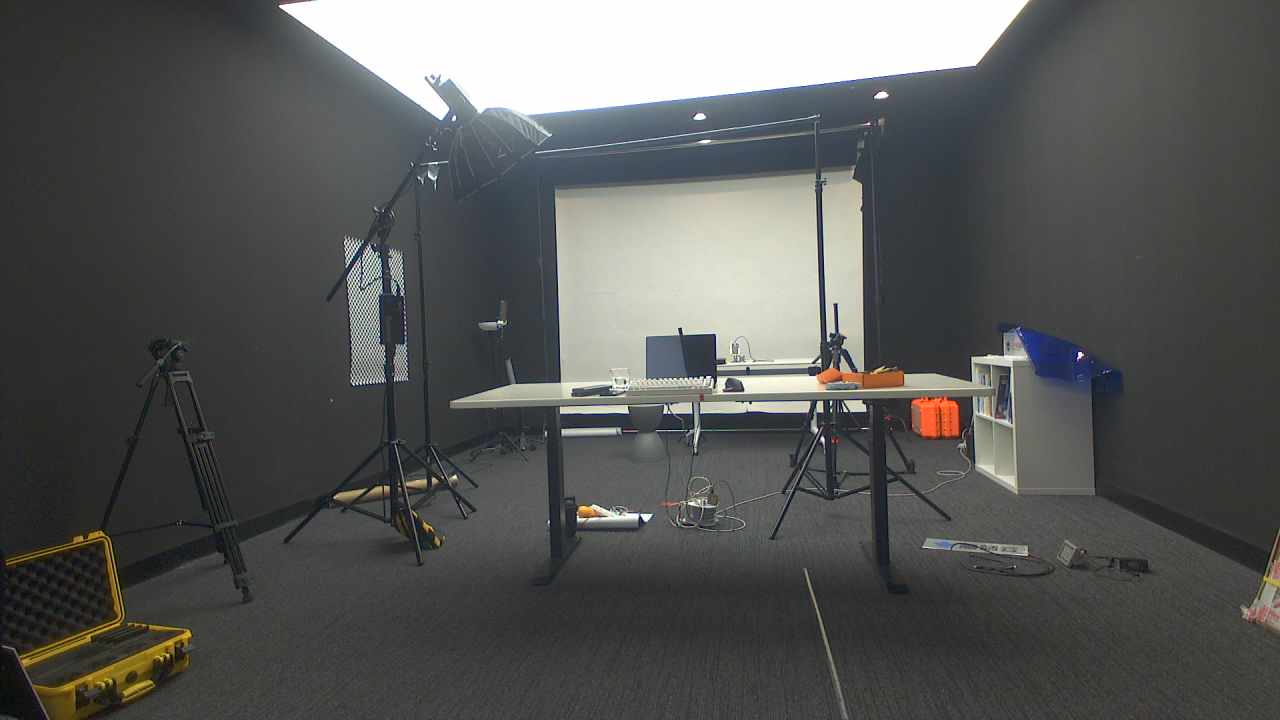

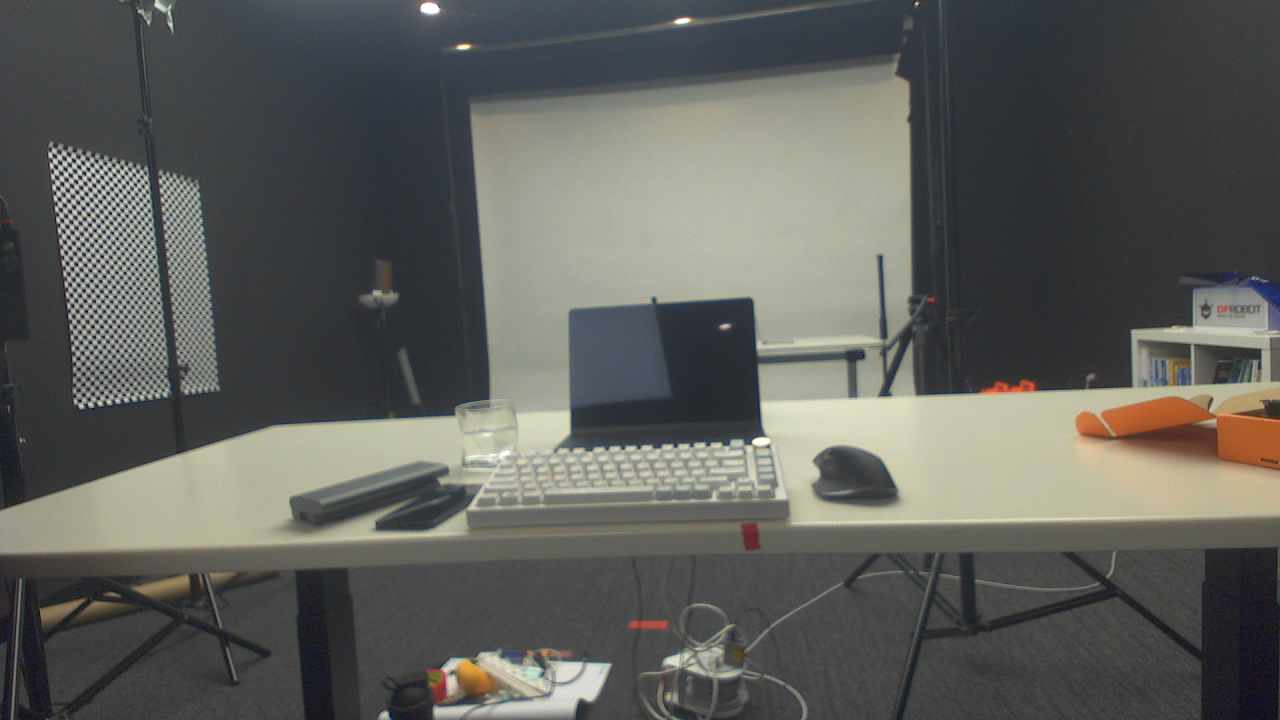

Medium-distance Indoor Scene
Distance: 100cm
Distance: 300cm
HUSKYLENS 2 Standard Lens (After Focus Adjustment)
The HUSKYLENS 2 comes with a stock lens. You may loosen the focus ring by following this tutorial to achieve subtle focusing adjustments.
High-definition original photos can be downloaded via 2. StardardLens(AdjustForces).zip. Thumbnails are displayed below and may suffer from image quality degradation.

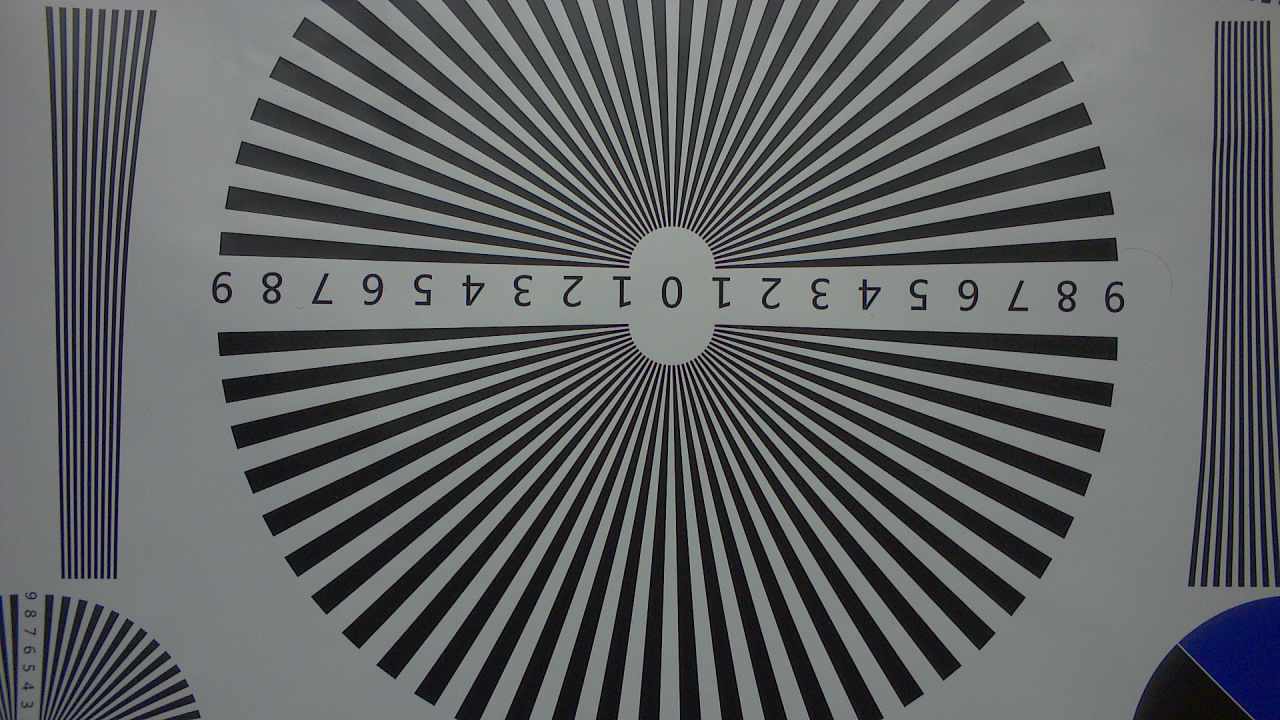

Lens Test Chart Performance

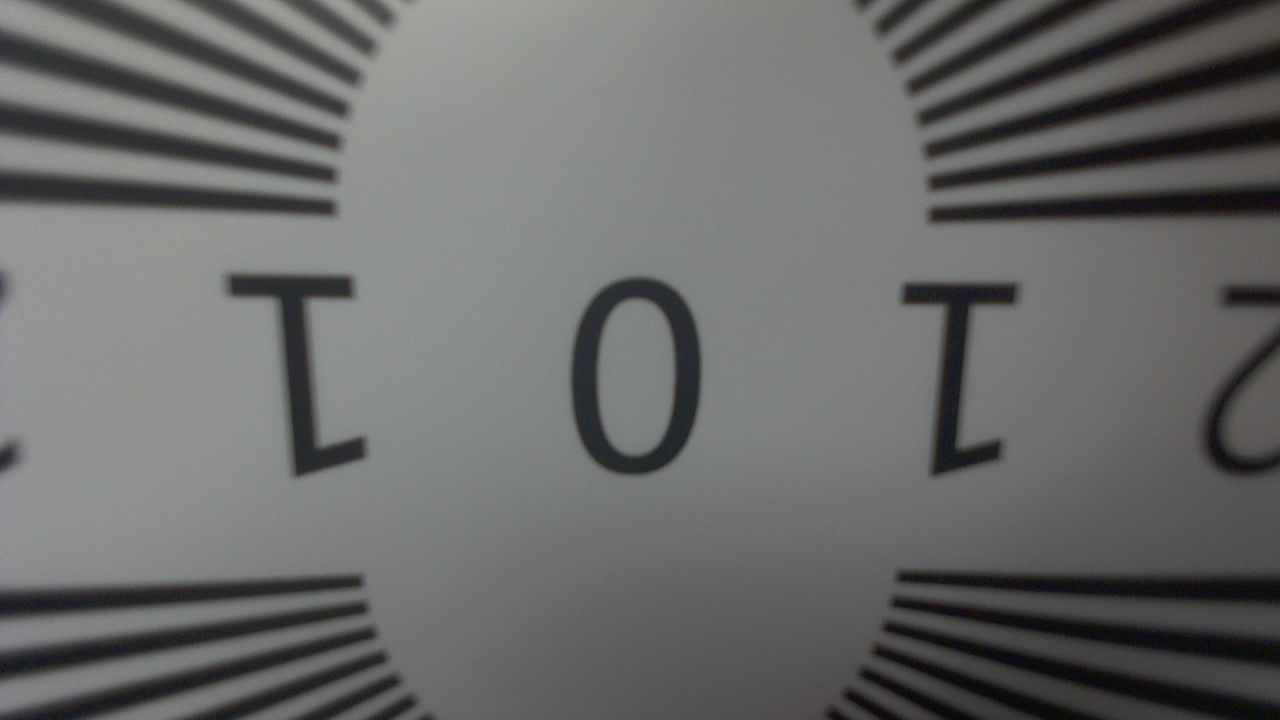

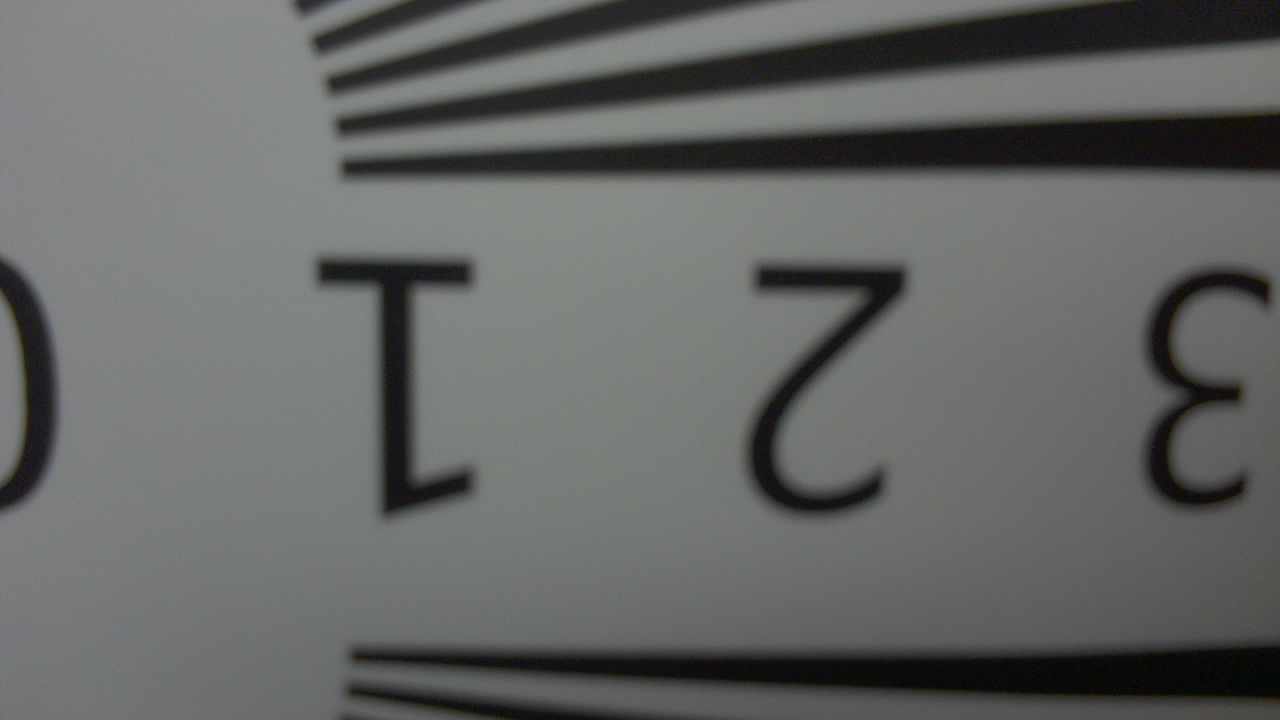

Distance: 10cm
Distance: 50cm
Distance: 100cm
Distance: 200cm

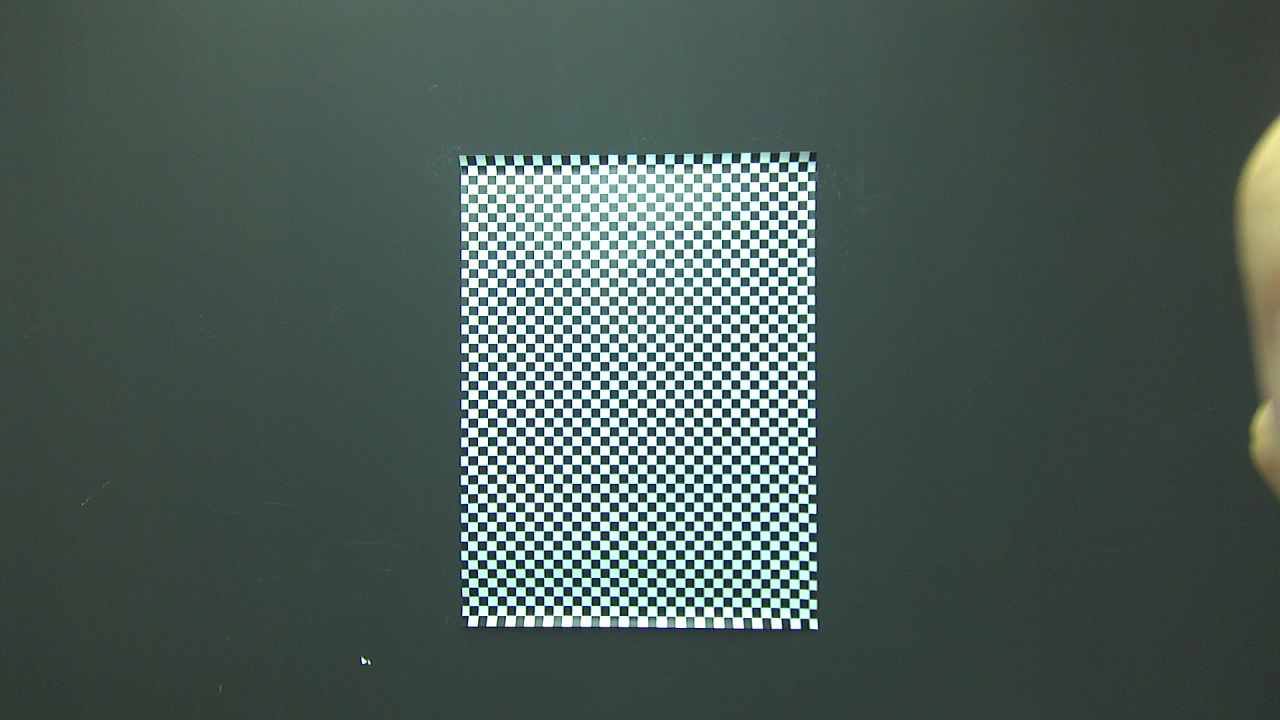

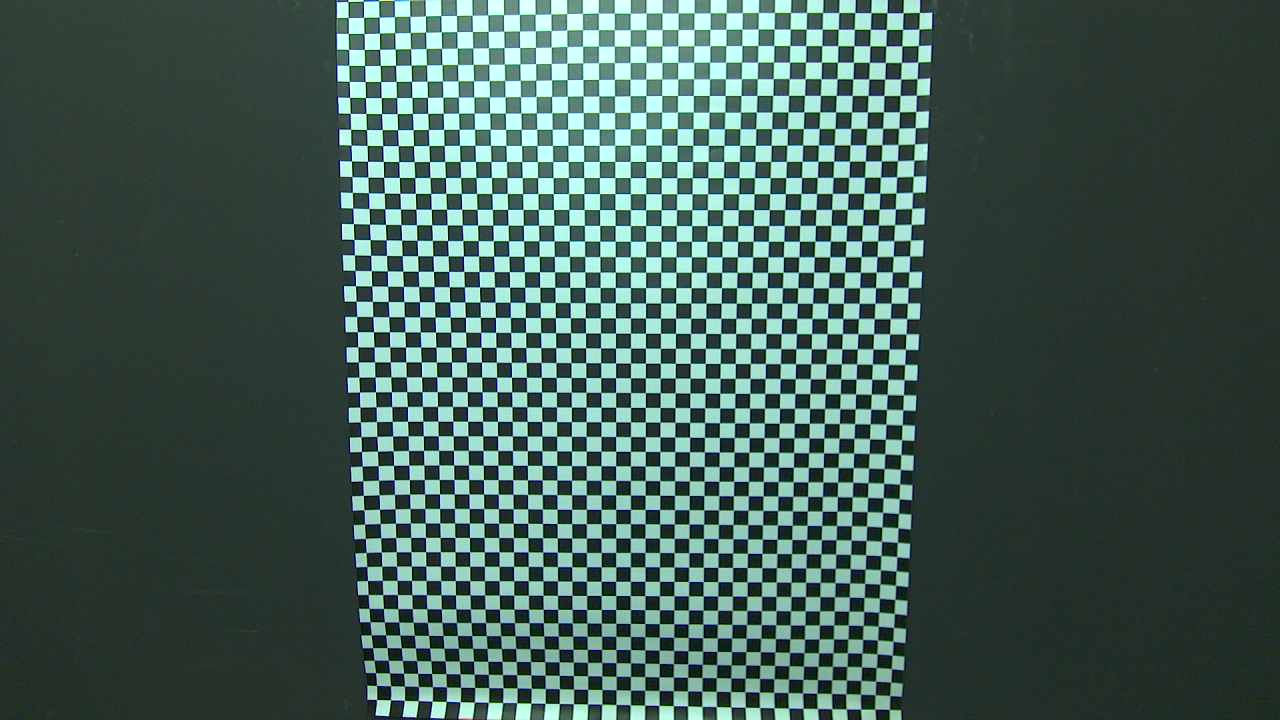

Distance: 100cm, checkerboard

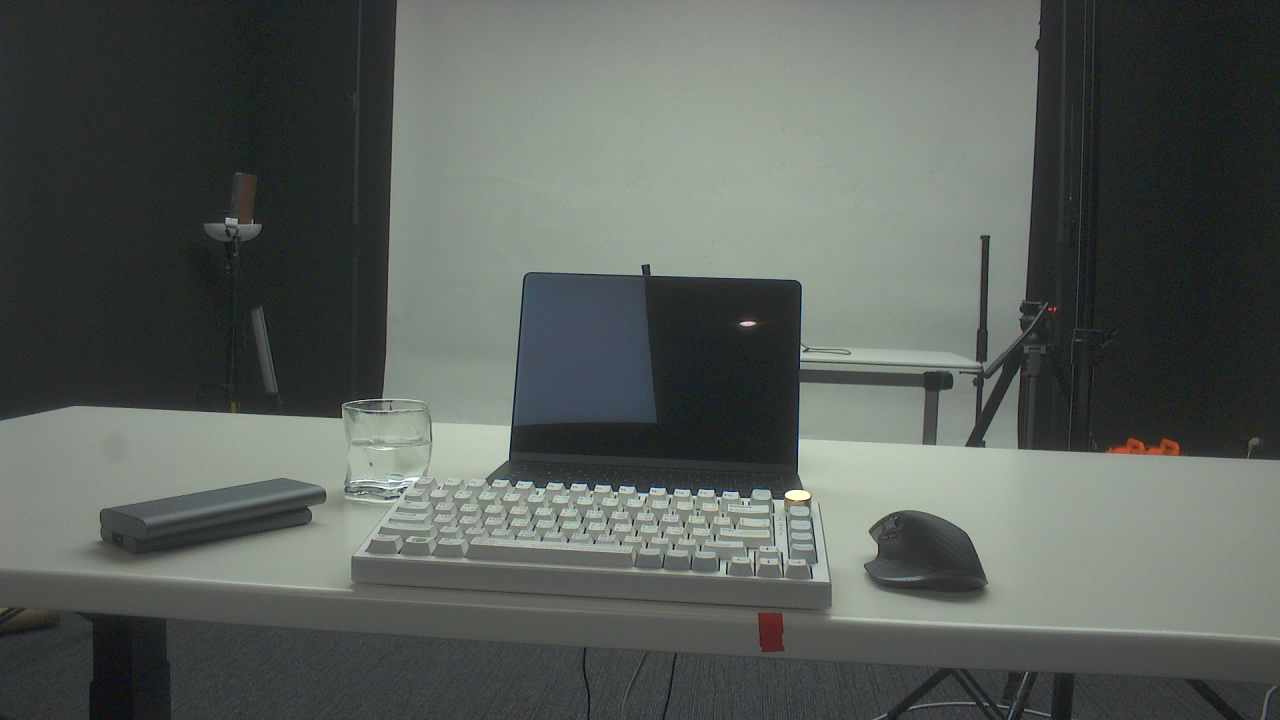

###Desktop Real Scene Shot
Distance: 50cm
Distance: 100cm
Close-range QR Code
Distance: 15cm
Medium-distance Indoor Scene
Distance: 100cm
Distance: 300cm
Adjustable Focus
SEN0728 Adjustable Focus Camera Module，SEN0729 IR Night Vision Camera
High-definition original photos can be downloaded via 3. AdjuestForce Lens.zip. Thumbnails are displayed below and may suffer from image quality degradation.

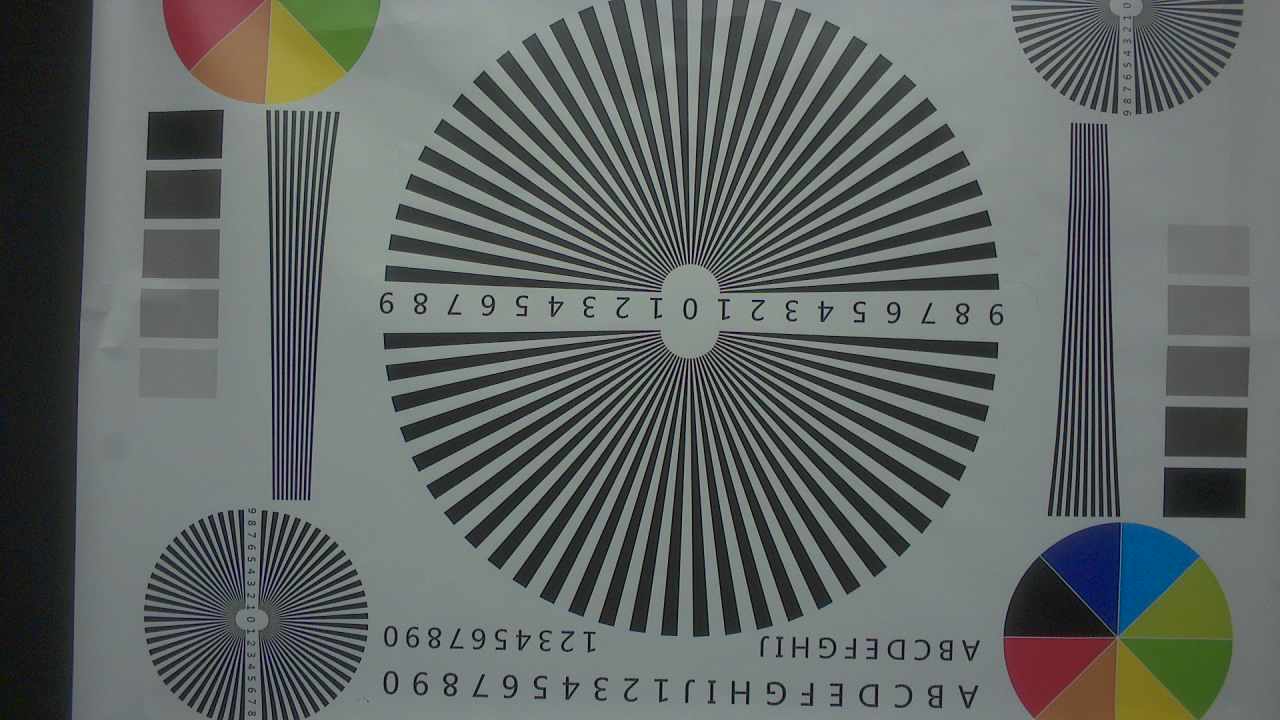

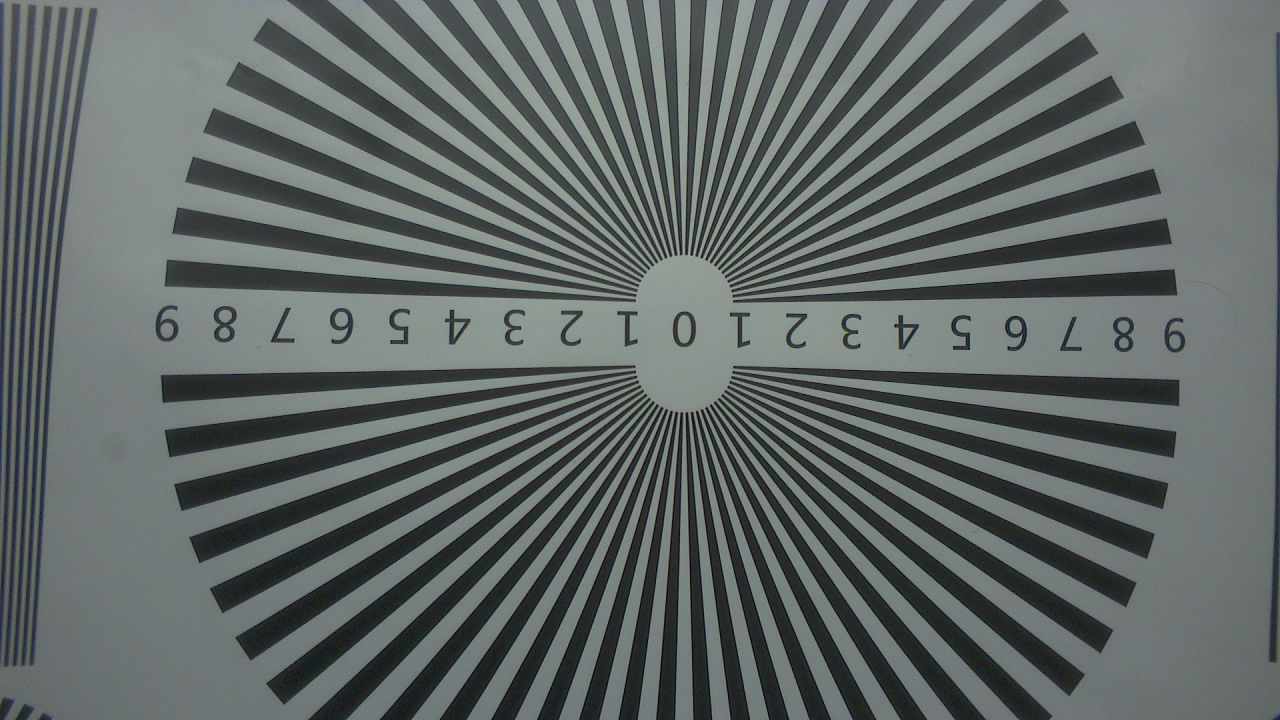

Lens Test Chart Performance
Distance: 5cm
Distance: 50cm
Distance: 200cm
Distance: 100cm, Checkerboard
###Desktop Real Scene Shot
Distance: 50cm
Distance: 100cm
Close-range QR Code
Distance: 15cm
Medium-distance Indoor Scene
Distance: 100cm
Distance: 300cm
Wild-angle Camera
The Wild-angle camera module in HUSKYLENS 2 Plus Kit
High-definition original photos can be downloaded via 4. FishEye.zip. Thumbnails are displayed below and may suffer from image quality degradation.
Lens Test Chart Performance
Distance: 5cm
Distance: 50cm
Distance: 80cm
Distance: 100cm
Distance: 100cm
Distance: 10cm，Checkerboard
Distance: 80cm，Checkerboard
Distance: 100cm，Checkerboard
Close-range QR Code
Distance: 15cm
Medium-distance Indoor Scene
Distance: 100cm
Distance: 300cm
