Introduction
Romeo BLE mini is a simplified version of Romeo board. It inherits all functions of Romeo BLE. Moreover, IT GOT A SMALLER SIZE! Yes, you got it all. It has 8 Digital pins, 4 analog pins and integrates Bluetooth 4.0 wireless communication function. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to Makers.
Version Update: V2 has upgraded its motor driver IC, it replaces HR8833 with TB6612 motor driver chip. TB6612 has the same control logic with L298 motor driver. The code will be compatible with Romeo robot control board. And it finally breakouts 2 interrupt pins now! You can connect encoders to make PID motor control.
Features
- Support Gravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules
- Support external power supply automatically switch, can simultaneously USB and external power supply
- Support wireless download program / wireless communication function
- Support mobile phone APP control
- Two way H-bridged Motor Driver
- Support servo external power input
- Supports AT commands to configure BLE
- Support serial transmission
- Support master and slave switch
Specification
- BLE chip: TI CC2540
- Transmission distance: 30m (open area)
- Microprocessor: ATmega328P
- Board selection: Arduino UNO
- Flash: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM2: KB (ATmega328P)
- EEPROM: 1 KB (ATmega328P)
- Clock Frequency: 16 MHz
- Digital I/O Pins: 8
- PWM Digital I/O Pins: 4 (D3, D9, D10, D11)
- Analog Input Pins: 4
- Output current: 1.2A single-channel continuous drive current
- Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
- Motor Drive Pins: D4, D5, D6, D7
- microUSB interface
- 2x2A H-bridge motor driver
- Size: 45x38.5mm

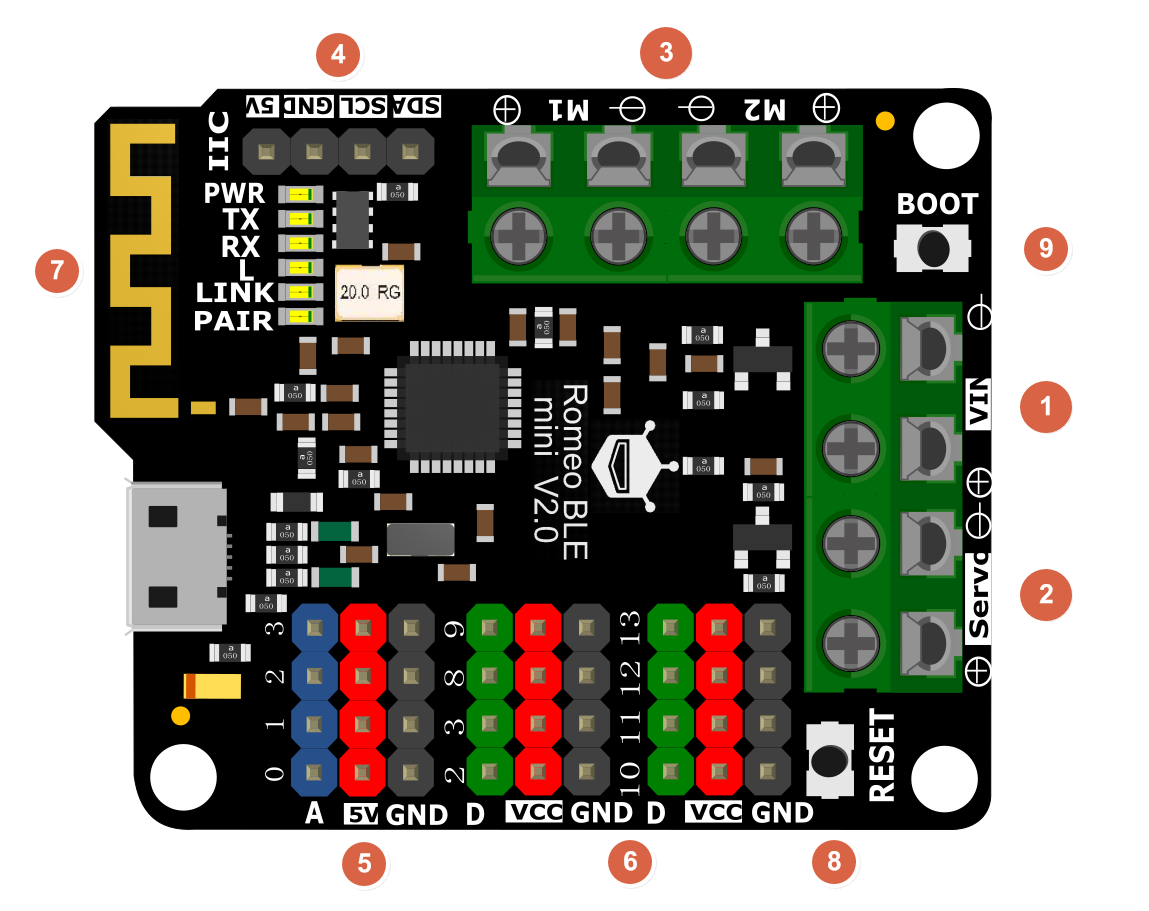

Board Overview
Label | Name | Description |
---|---|---|
1 | +VIN- | Servo & Motor power input 6.5~10v |
2 | +Servo- | Digital port power input 5~12V |
3 | M1 & M2 Terminals | 2-Way Motor Controller: |
Motor 1 : PIN4 (Direction), PIN5 (PWM Speed) | ||
Motor 2 : PIN7 (Direction), PIN6 (PWM Speed) | ||
4 | I2C | I2C interface (A4 & A5) |
5 | A 5V GND | Gravity Analog Interface: A0, A1, A2, A3 |
6 | D VCC GND | Gravity Digital Interface: D2, D3, D8, D9, D10, D11, D12, D13; |
7 | LED light | |
PWR-power indicator | ||
TX/RX-Data transmissing/receiving indicator | ||
L-D13 led * LINK-Bluetooth link indicator | ||
PAIR-Bluetooth pair indicator | ||
8 | RESET | ATmega328P Reset button |
9 | BOOT | Used for update BLE Firmware |
Tutorial
In this tutorial, you can control two motors by enter("a","b","c","d","e") in Serial Monitor on PC.
Requirements
- Hardware
- Romeo BLE mini x1
- 6v Motro x2
- Software
- Arduino IDE Click to Download Arduino IDE
Connection Diagram
Sample Code
//Standard PWM DC control
int E1 = 5; //M1 Speed Control
int E2 = 6; //M2 Speed Control
int M1 = 4; //M1 Direction Control
int M2 = 7; //M1 Direction Control
void stop(void) //Stop
{
digitalWrite(E1,LOW);
digitalWrite(E2,LOW);
}
void advance(char a,char b) //Move forward
{
analogWrite (E1,a); //PWM Speed Control
digitalWrite(M1,HIGH);
analogWrite (E2,b);
digitalWrite(M2,HIGH);
}
void back_off (char a,char b) //Move backward
{
analogWrite (E1,a);
digitalWrite(M1,LOW);
analogWrite (E2,b);
digitalWrite(M2,LOW);
}
void turn_L (char a,char b) //Turn Left
{
analogWrite (E1,a);
digitalWrite(M1,LOW);
analogWrite (E2,b);
digitalWrite(M2,HIGH);
}
void turn_R (char a,char b) //Turn Right
{
analogWrite (E1,a);
digitalWrite(M1,HIGH);
analogWrite (E2,b);
digitalWrite(M2,LOW);
}
void setup(void)
{
int i;
for(i=4;i<=7;i++)
pinMode(i, OUTPUT);
Serial.begin(9600); //Set Baud Rate
Serial.println("Run keyboard control");
}
void loop(void)
{
if(Serial.available()){
char val = Serial.read();
if(val != -1)
{
switch(val)
{
case 'w'://Move Forward
advance (255,255); //move forward in max speed
break;
case 's'://Move Backward
back_off (255,255); //move back in max speed
break;
case 'a'://Turn Left
turn_L (100,100);
break;
case 'd'://Turn Right
turn_R (100,100);
break;
case 'z':
Serial.println("Hello");
break;
case 'x':
stop();
break;
}
}
else stop();
}
}
BLE Configuration
Configure the BLE through AT command
There are three revolutionary BLE firmware versions now, maybe it will be more. For the reason of unified management, we will put all BLE AT command on the BLUNO wiki page Configure the BLE through AT command.
Bluno Beetle Basic Demo
In this section, you can use the Romeo BLE mini to connect with the Android phone or iPhone .The Step by Step tutorial of the Romeo BLE mini is almost the same with the Bluno.
Wireless Programming via BLE
In this section, we will learn how to Upload the sketch on air via BLE. It is really amazing that you can do uploading process without a line.The Step by Step tutorial of the Romeo BLE mini is almost the same with the Bluno. How to Wireless Programming through BLE.
Update BLE Firmware
It is better to update the newest firmware for the better experience. As Romeo BLE mini is using CC2540 chip, the method of the updating is very close to BLUNO. Please choose "Bluno" firmware. Or it won't work. How to update the BLE firmware.
ICSP interface
image:Romeo_BLE_mini2.png|1 image:DFR0339 ICSP.png|2
- ICSP1: Atmega 328P
- ICSP2: CC2540
FAQ
For any questions, advice or cool ideas to share, please visit the DFRobot Forum.
